Mya 4 vessels and accessories
Mya 4 vessels and accessories Automated Reaction Stations
Distributor & Service Provider In India
Radleys Mya 4 Reaction Station, distributed by Inkarp Instruments Pvt Ltd in India, offers a range of vessels and accessories for automated reaction stations. The Mya 4 accommodates various vessel sizes and types, including round-bottom flasks, jacketed vessels, and custom designs. With Radleys' innovative solutions and Inkarp's local support.
The precision of temperature control provided by the Mya 4 has been essential to understanding key processing parameters of temperature sensitive experiments

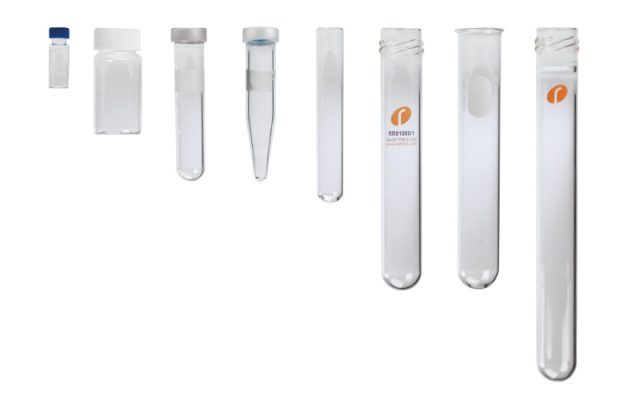

Vials and tubes from 2 ml to 50 ml
- 12 mm, 16 mm, 17 mm, 17 mm tapered, 24 mm, 1 inch and 28 mm diameters
- Radleys Carousel 12 Plus reaction tubes
- 200 mm long tube can be attached to the Reflux or Manifold head. Allows for overhead stirring from as low as 5 ml

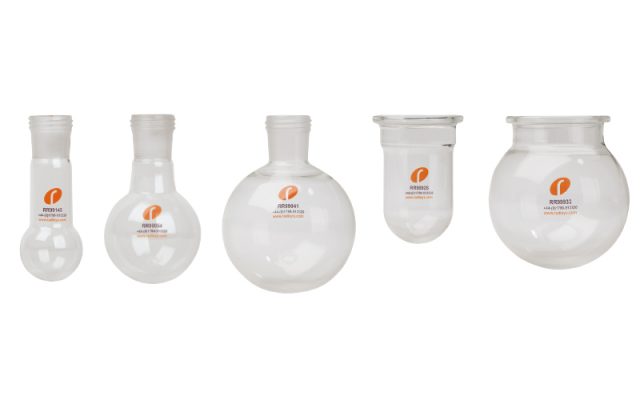

Round bottom flasks from the Carousel 6 Plus range
- 25 ml, 50 ml, 100 ml and 250 ml
- One or two side arm options
- Standard and wide neck options
- Baffled vessel options

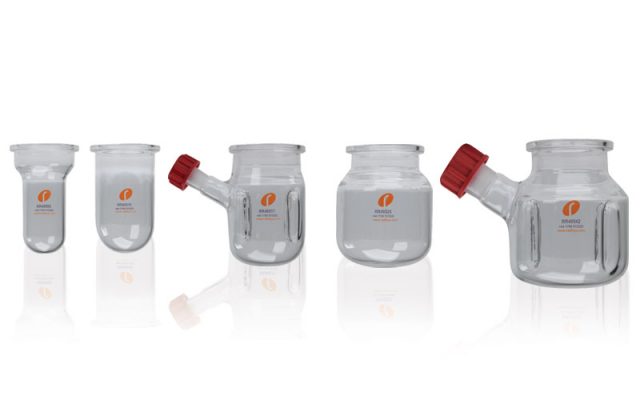

Process reaction vessels
- With straight sides and dished base to mimic jacketed reactors
- 50 ml, 100 ml, 150 ml, 250 ml and 400 ml
- Side arm option
- Baffled vessel options

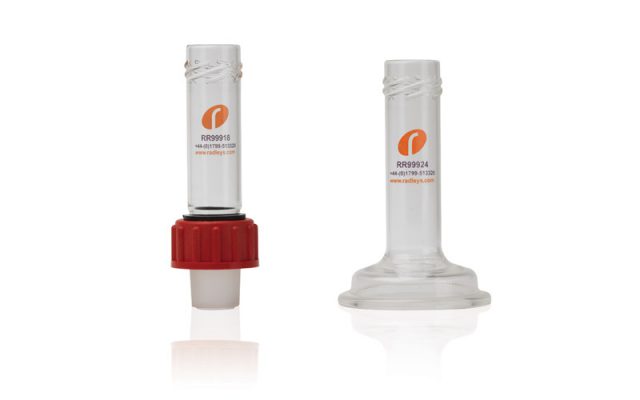

Reflux tubes
- To be used with the Reflux head – act as condensers
- Wide neck reflux tubes option for wide neck round bottom flasks and process vessels

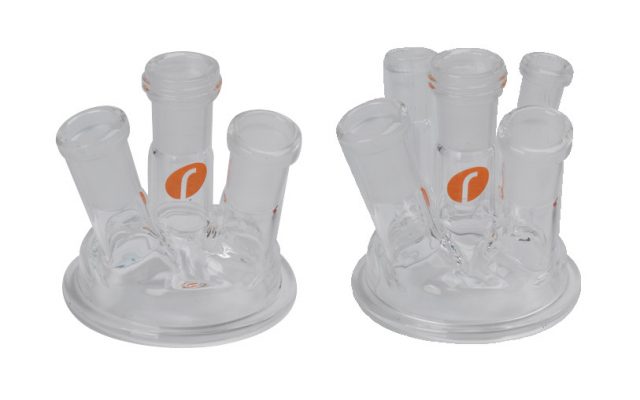

Glass multi-neck lids
- To be used with the Manifold head
- 3- or 5-neck lids
- For process vessels and wide neck round bottom flasks
PTFE lids
- For improved durability and safety
- Stronger to support heavier probes and other accessories
- Custom PTFE lids available on request
- 3 types of PTFE lids
6-neck PTFE lid for Blaze Metrics probe
- Constructed from glass filled PTFE
- 6 neck lid, supplied with a dedicated port plug and short blanking plug
- Lid can be used in standard operation when not using the PAT probe

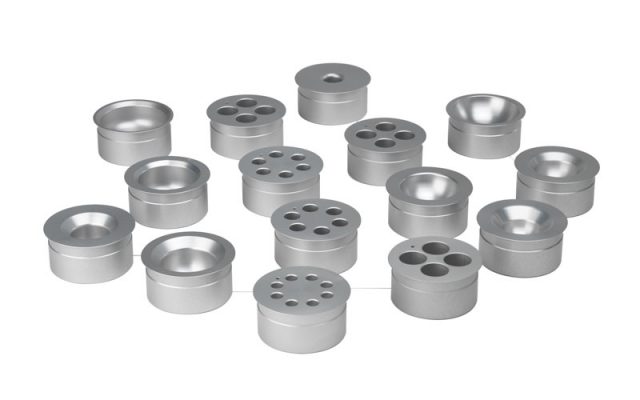

Range of inserts
- Made of anodised aluminium for good heat transfer
- Dedicated insert for each vessel size (no layering of inserts)
- Custom inserts for vials/tubes on request
Accessory glassware
A wide range of dedicated glass accessories including:
- Condensers
- Dropping funnels
- Solid addition funnels
- Stoppers

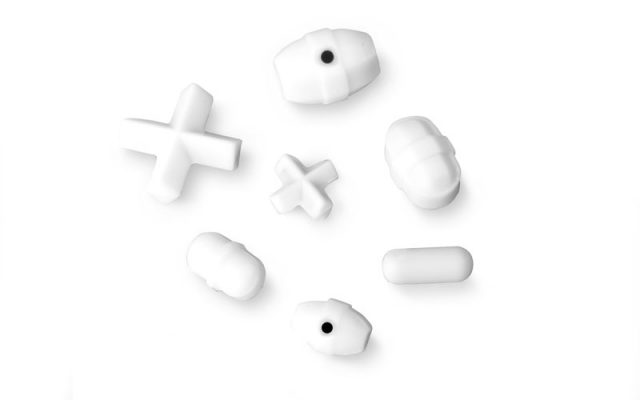

PTFE Magnetic Stirring Bars
Wide range of stirrer bars available. Please contact us for recommended stirrer bars for each vessel size/shape.

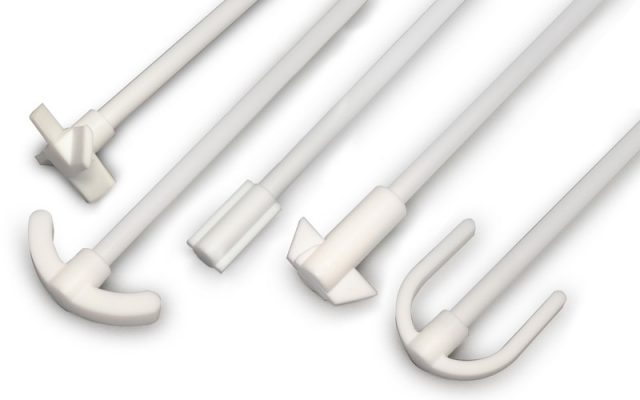

PTFE Stirrer Shafts
Turbine, anchor, U-shape, centrifugal and flat paddles available.
Custom stirrer shafts available on request.
Temperature probes and adapters
Pt100 temperature probes options:
- stainless steel
- PTFE coated for added chemical resistance
Temperature probe adapters:
- for plain or coated probes,
- B10 or B14 adapters.

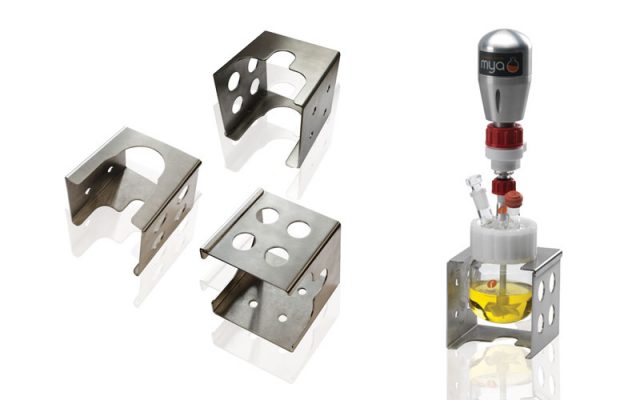

Universal vessel holder
Accepts all Mya standard round bottom flasks, wide-neck flasks, process reaction vessels and Quick-thread reaction tubes.
