NanoPhotometer® N30

APPLICATIONS Package – Expand Your NanoPhotometer® N30-Touch Capabilities

Unlock the full analytical power of your NanoPhotometer® N30-Touch with the APPLICATIONS Package— a versatile software upgrade designed to support a wide range of laboratory workflows with precision and ease. Whether you're working with nucleic acids, proteins, or microbial cultures, this package empowers researchers with intuitive tools and advanced analytical features.

Inkarp is the official distributor and service provider in India for NanoPhotometer® N30, offering complete upgrade and technical support.

Included Applications:

• Protein Assays

  Perform colorimetric protein quantification using preprogrammed methods such as BCA, Bradford, and Lowry™.

• Kinetics

  Measure real-time changes in absorbance at fixed wavelengths to study enzymatic reactions and sample behavior over time.

• OD600 Cell Density

  Estimate bacterial or cell concentrations using absorbance readings at 600 nm. Built-in calculations convert OD values to cells/ml.

• Wavescan

  Capture the full absorbance spectrum (200–650 nm, expandable to 900 nm*) and automatically identify peak heights and positions for detailed sample profiling.

• Standard Curve

  Generate multi-point calibration curves at any selected wavelength (200–650 nm, up to 900 nm*) for accurate quantification of unknown samples.

Additional Smart Features:

• Dye Label Detection

  Analyze dye-conjugated samples with high sensitivity.

• Sample Control™ Technology

  Automatically detects and flags sample impurities, turbidity, air bubbles, or lint contamination—ensuring reliable data quality.

CONNECTIVITY Package – Smarter Control and Seamless Data Management

Take full control of your laboratory workflows with the CONNECTIVITY Package for the NanoPhotometer® N30-Touch. Designed for modern, digitally driven labs, this upgrade enhances your device with advanced data sharing, remote access, and system integration capabilities.

As the authorized NanoPhotometer® N30 distributor and service provider in India, Inkarp provides complete upgrade solutions and support for maximizing instrument connectivity.

Key Features:

• Multi-Port Connectivity

  Enable effortless data transfer and control via Wi-Fi, USB A/B, HDMI, and LAN ports.

• Remote Device Access

  Operate the NanoPhotometer® N30-Touch from your PC, tablet, or smartphone, enabling flexible control across the lab or facility.

• Network Printing

  Print results directly from the instrument using network-connected printers—no need for external software.

• LIMS Integration

  Seamlessly integrate your NanoPhotometer with your lab's information management system using REST API and Push Service protocols.

• Enhanced Storage

  Includes 64 GB of onboard data storage, ideal for long-term result archiving, protocol saving, and file management.

• Dye Label Detection

  Analyze dye-conjugated samples with high sensitivity.

• Sample Control™ Technology

  Automatically detects and flags sample impurities, turbidity, air bubbles, or lint contamination—ensuring reliable data quality.

With the CONNECTIVITY Package, your NanoPhotometer® N30-Touch becomes a future-proof, fully integrated lab workstation. Gain better access, more control, and streamlined data flow—backed by Inkarp’s trusted support across India.

Technical Specifications:

NanoVolume Performance

Specification	Value
Detection Range (dsDNA, BSA)	5 – 1500 ng/µl, 0.15 – 44 mg/ml
Detection Range (PERFORMANCE Package)	1 – 16,500 ng/µl, 0.03 – 478 mg/ml
Minimum Sample Volume	0.3 µl
Photometric Range (10 mm equivalent)	0.1 – 30 A
Photometric Range (PERFORMANCE Package)	0.02 – 330 A
Path Length	0.67 and 0.07 mm
Dilution Factor	15 and 140

Optical Specifications

Specification	Value
Detection Range (dsDNA, BSA)	5 – 1500 ng/µl, 0.15 – 44 mg/ml
Detection Range (PERFORMANCE Package)	1 – 16,500 ng/µl, 0.03 – 478 mg/ml
Minimum Sample Volume	0.3 µl
Photometric Range (10 mm equivalent)	0.1 – 30 A
Photometric Range (PERFORMANCE Package)	0.02 – 330 A
Path Length	0.67 and 0.07 mm
Dilution Factor	15 and 140
Wavelength Scan Range	200 – 650 nm
Wavelength Scan Range (PERFORMANCE Package)	200 – 900 nm
Measure Time for Full Scan Range	2.5 – 4.0 sec
Wavelength Reproducibility	± 0.2 nm
Wavelength Accuracy	± 0.75 nm
Bandwidth	< 1.5 nm
Stray Light	< 0.5% @ 240 nm using NaI
Absorbance Reproducibility	< 0.002 A @ 0.5 A @ 280 nm; CV < 1% @ 0.13 A @ 280 nm
Absorbance Accuracy	< 1.75% @ 0.7 A @ 280 nm
Optical Arrangement	1x 4096 CMOS Array

Lamp

Specification	Value
Lamp	Xenon flash lamp
Lifetime	10⁸ flashes, up to 10 years

Processing Power & Compatibility

Specification	Value
Operating System	Linux-based NPOS
Onboard Processor	Intel Celeron dual core 2.4 GHz
Internal Data Storage	CONNECTIVITY Package: 64 GB
Control Options	Onboard with built-in touchscreen, PC/Tablet/Smartphone*
Software Compatibility	Windows 8/10/11 (32 & 64-bit), OS X (Intel & Apple M1), iOS, Android

General Specifications

Specification	Value
Main Body Size	200 x 200 x 120 mm
Weight	3.8 – 5.2 kg depending on configuration
Operating Voltage	90 – 250 V ±10%, 50/60 Hz, 90 W, 19 VDC
Display	1024 x 600 pixels, glove-compatible touchscreen
Certification	CE, IEC 61010-1:2012, EN 61326-1:2013
Additional Data Input	Mouse & keyboard options
Security	Slot for Kensington lock

Ordering Information

Article Number	Product Description
N30-Touch	Implen NanoPhotometer® N30-Touch UV/Vis Spectrophotometer
UP-N30-PER	Performance Upgrade Package for N30-Touch
UP-N30-APP	Applications Upgrade Package for N30-Touch
UP-N30-CON	Connectivity Upgrade Package for N30-Touch

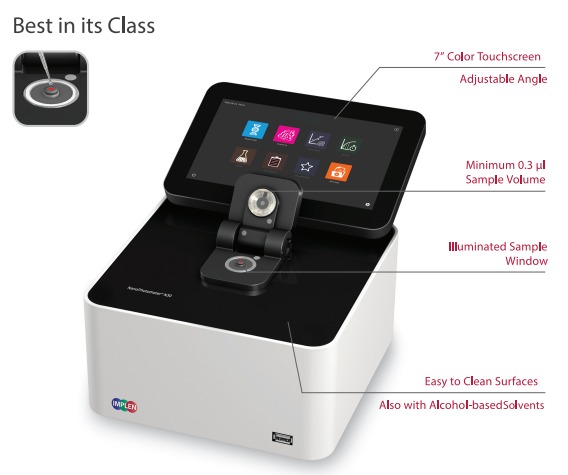

NanoPhotometer® N30-Touch – Trusted Microvolume Spectrophotometry for Modern Labs

The NanoPhotometer® N30-Touch is a high-performance microvolume UV/Vis spectrophotometer designed to deliver unmatched precision, reliability, and speed in nucleic acid, protein, and cell density quantification. With over 10,000 units installed worldwide and cited in more than 15,000 peer-reviewed publications, this German-engineered system sets the global standard for microvolume analysis.

As an authorized NanoPhotometer® N30 distributor and service provider in India, Inkarap ensures seamless access, installation, and support for this innovative technology.

Why Choose the NanoPhotometer® N30-Touch?

Trusted Technology

Backed by global adoption across leading biotech, pharma, academic, and clinical labs, the NanoPhotometer® series is a proven choice for consistent, reproducible results in life science applications.

High-Quality German Engineering

Built with precision in Germany, the N30-Touch offers durable construction, seamless operation, and long-term performance with minimal maintenance—ideal for high-throughput labs.

Future-Proof Investment

The N30-Touch supports modular upgrades through optional PERFORMANCE, APPLICATIONS, and CONNECTIVITY packages—giving you the freedom to expand capabilities as your lab’s needs evolve.

Recalibration-Free Operation

Featuring sealed optics and fixed pathlengths, this system eliminates recalibration downtime and costs. Its scratch-resistant quartz surfaces are easy to clean and maintenance-free.

Instant Results

No warm-up required—just power on and begin. Achieve full-spectrum scans (200–650 nm, expandable to 900 nm) in just 2.5–4 seconds. Auto Sample Lid technology enables fast sample placement with automated pathlength detection and historical result tracking.

Unmatched Accuracy

Powered by patented Sample Compression Technology™, the NanoPhotometer® N30-Touch ensures lifetime accuracy with stable pathlengths that eliminate variability from evaporation and surface tension.

Easy-to-Use Interface

Built on the NPOS Operating System, the touchscreen interface offers intuitive navigation with secure onboard software—no external PC required. Run a wide range of applications and save time with built-in automation.

Convenient Data Management

Export results effortlessly in PDF, Excel, or Implen IDS format directly to USB. Stay organized with built-in sample history and file storage capabilities.



Precision Technologies Behind the NanoPhotometer® N30-Touch

Sample Compression Technology™

The NanoPhotometer® N30-Touch is built with innovative Sample Compression Technology™, delivering highly accurate results even with ultra-low sample volumes.

• Forms a capillary film between scratch-resistant, metal-free quartz surfaces
• Enables precise measurements with as little as 0.3 µl of sample
• Eliminates the need for surface tension, ensuring stable readings every time
• Creates a sealed environment that prevents sample evaporation during analysis
• Compatible with organic solvents, detergent buffers, and sensitive protein assays

This technology ensures repeatable, high-quality readings, even in demanding life science applications.

True Path Technology™ – Recalibration-Free Accuracy for Life

With True Path Technology™, the NanoPhotometer® N30-Touch guarantees long-term measurement reliability:

• Uses sealed optics and fixed anchor points to maintain consistent pathlengths
• Prevents drift over time, eliminating performance degradation
• Fully recalibration-free for life, saving you costly and time-consuming service cycles
• Backed by Implen’s lifetime accuracy guarantee

This makes the NanoPhotometer® N30-Touch a maintenance-free, lab-ready solution for long-term use.

NanoPhotometer® N30-Touch Extension Packages – Scalable and Cost-Effective

At Inkarap, we understand that every lab’s needs evolve. That’s why the NanoPhotometer® N30-Touch comes with flexible extension packages designed to grow with your research:

• PERFORMANCE Package – Expand detection range and scan up to 900 nm

• APPLICATIONS Package – Unlock advanced analysis like protein assays, kinetics, OD600, and more

• CONNECTIVITY Package – Enable Wi-Fi, remote control, LIMS integration, and data storage

You have the freedom to upgrade anytime, based on your workflow and budget—ensuring you never pay for features you don’t need.

Feature	N30-Touch	PERFORMANCE	APPLICATIONS	CONNECTIVITY
Sample Volume	0.3 – 2 µl
Bandwidth	< 1.5 nm
Absorbance Accuracy	< 0.002 Abs
Wavelength Accuracy	± 0.75 nm
Optical Arrangement	1x 4096 CMOS Array
Recalibration Free	✓
Measure Time for Full Scan Range	2.5 – 4.0 sec
Warranty	12 months

EXPANDED RANGES (with PERFORMANCE package)

Feature/Parameter	N30-Touch	PERFORMANCE
Detection Range (dsDNA)	5 – 1,500 ng/µl	1 – 16,500 ng/µl
Detection Range (BSA)	0.15 – 44 mg/ml	0.03 – 478 mg/ml
Wavelength Scan Range	200 – 650 nm	200 – 900 nm

APPLICATIONS (with APPLICATIONS package)

Category	Details
Applications	Nucleic Acid, Protein UV Protein Assays, Kinetics, OD600 Cell Density, Wavescan, Wavelength, Concentration, Absorbance Ratio, Custom Curve, Air Bubble Recognition, Dye Labels

Data Storage and Management (CONNECTIVITY package)

Category	Details
Data Storage	USB Data Storage (N30-Touch) Ultimate connectivity options: WiFi Control via PC/Tablet/Smartphone LAN Control via PC/Tablet/Smartphone USB for Network Storage or Printer 64 GB Internal Onboard Storage Stored Results in Various File Formats LIMS Integration via REST API & Push Service

Other

Category	Details
Software	Limited Software Updates (N30-Touch) FREE SOFTWARE UPDATES (with packages)
