Sonochemistry Equipment

Sonochemistry Equipment Vcx 750-500 W
Distributor & Service Provider In India

Inkarp Instruments, a trusted Sonics partner, offers Sonochemistry Equipment for VCX 750-500W Systems in India.

The chemical effects of ultrasound are diverse and include dramatic improvements in both stoichiometric and catalytic reactions. In some cases, ultrasonic treatment can increase reactivity by nearly a million-fold. It does so through the process of acoustic cavitation; the formation, growth, and implosive collapse of bubbles in a liquid.

During cavitational collapse, intense heating of the bubbles occurs. The localized hot spots have temperatures in the range of 5000°C, pressures approaching 500 atmospheres, lifetimes of a few microseconds, and heating and cooling rates greater than 109K/s. Of special interest for sonochemistry research, is the fact that cavitation generates highly reactive free radicals that greatly enhance chemical reactions.

Applications for chemical reactions exist in both homogeneous liquids and in liquid-solid systems. Ultrasound has also been found to be beneficial for the initiation or enhancement of catalytic reactions, in both homogeneous and heterogeneous cases.

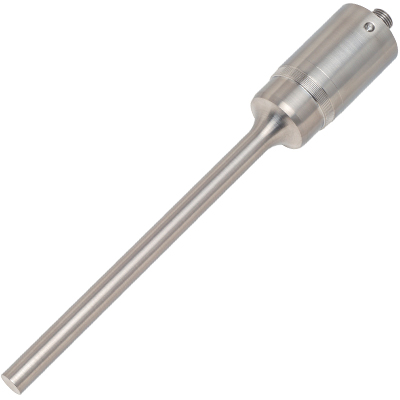

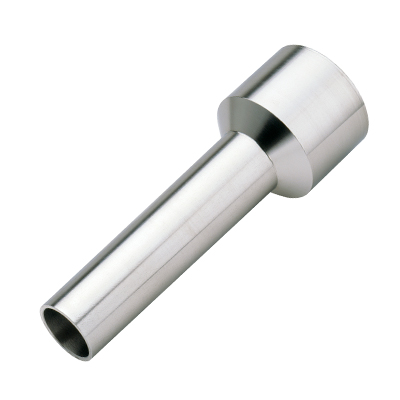

The adapter Part No. 830-00014 screws onto the special probe Part No. 630-0217 at the nodal point. The glass chamber slides onto the adapter and is secured in place as the bushing is screwed into the chamber compressing the O-ring. Moving the glass chamber up or down on the adapter allows the portion of the probe protruding out of the adapter to be immersed at the optimum depth into the sample.

Sonochemical Reaction Accessories

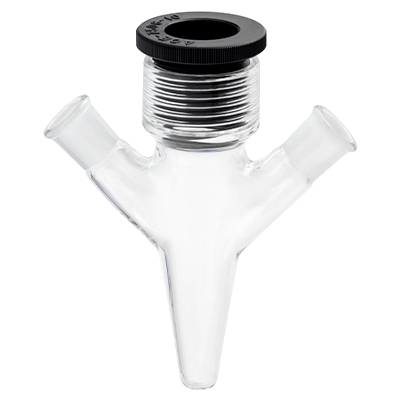

4-10ML Reaction Vessel

Four to Ten mL Sonochemical Reaction Vessel

4-10mL reaction vessel. Two 14/20 side necks. Supplied with bushing and O-ring. Glass chamber height: 4 ⁷/₈" (123mm).

Part No.
830-00011

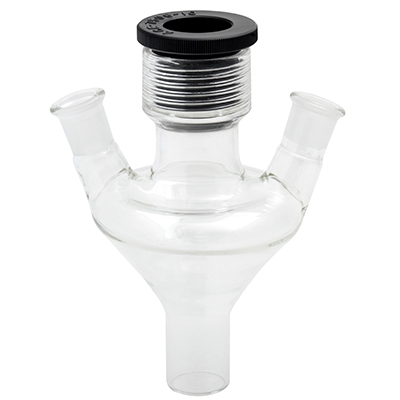

10-50ML Reaction Vessel

Ten to Fifty mL Sonochemical Reaction Vessel

10-50mL reaction vessel. Bottom well capacity: 10mL. Main body capacity: 50mL. Two 14/20 side necks. Supplied with bushing and O-ring. Glass chamber height: 4 ³/₄" (120mm).

Part No.
830-00012
