Blog Standard
Streamlining Bacterial Culture Standardization with McFarland Standards and Implen OD600
In microbiology, achieving consistent and accurate bacterial culture standardization is critical for reliable experimental outcomes. McFarland standards provide a trusted method for estimating bacterial culture concentrations by measuring turbidity, while the Implen OD600 device enhances this process with precise optical density 600 nm (OD600) measurements. This blog explores how McFarland standards, paired with the Implen OD600 device, revolutionize microbial inoculum preparation, ensuring quality control in applications like antibiotic susceptibility testing and microbial enumeration. We'll dive into the protocols, McFarland app features, and the science behind OD600 absorbance, drawing from a detailed application note.
Understanding McFarland Standards
McFarland standards are turbidity-based references used to standardize the concentration of bacterial cultures. By mixing barium chloride and sulfuric acid, these standards create a barium sulfate precipitate with defined turbidity levels, expressed as McFarland Units (MFU). For example, a 0.5 McFarland unit corresponds to approximately 1.5 × 10^8 colony-forming units (CFU) per mL, a benchmark widely used in microbiology for microbial inoculum preparation. Higher MFU values (e.g., 1 to 5) represent increasing bacterial density, up to 15 × 10^8 cells/mL. These standards are essential for applications such as:
- Antibiotic Susceptibility Testing: Ensuring consistent bacterial concentrations for accurate testing of antibiotic efficacy.
- Infection Studies: Standardizing inocula for reproducible results in experimental models.
- Microbial Enumeration: Estimating bacterial load in clinical or research samples.
- Quality Control: Verifying sterilization processes in pharmaceutical and clinical settings.
| MFU Value | Approximate Cell Density (cells/mL) |
|---|---|
| 0.5 MFU | 1.5 × 108 |
| 1 MFU | 3.0 × 108 |
| 2 MFU | 6.0 × 108 |
| 3 MFU | 9.0 × 108 |
| 4 MFU | 12 × 108 |
The Role of Visual Assessment and Its Limitations

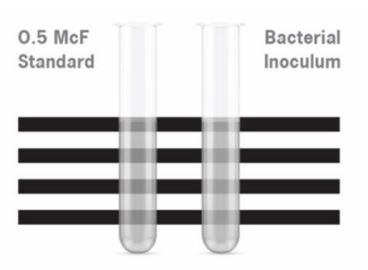

Traditionally, McFarland standards are assessed visually by comparing the turbidity of a bacterial culture to a standard, such as the 0.5 McFarland unit, against a Wickerham card. This method, while simple, is subjective and prone to variability due to factors like ambient light, observer experience, and standard quality. Such inconsistencies can compromise quality control in critical experiments.
Implen OD600: Precision in Bacterial Quantification
The Implen OD600 device addresses these limitations by providing a spectrophotometer-based approach to measure OD600 absorbance, offering superior OD600 reader accuracy. The device’s McFarland app features convert absorbance readings at 600 nm into MFU values using a McFarland calibration curve, eliminating subjective bias. The Implen OD600 supports various sample containers (e.g., 16 mm test tubes, cuvettes) without adapters, enhancing versatility. Its default calibration curve, based on ProLab McFarland standards (Serial Number 395123, traceable to SD2350, February 27, 2024), ensures reliable measurements, with the option to create custom curves for specific tube types.

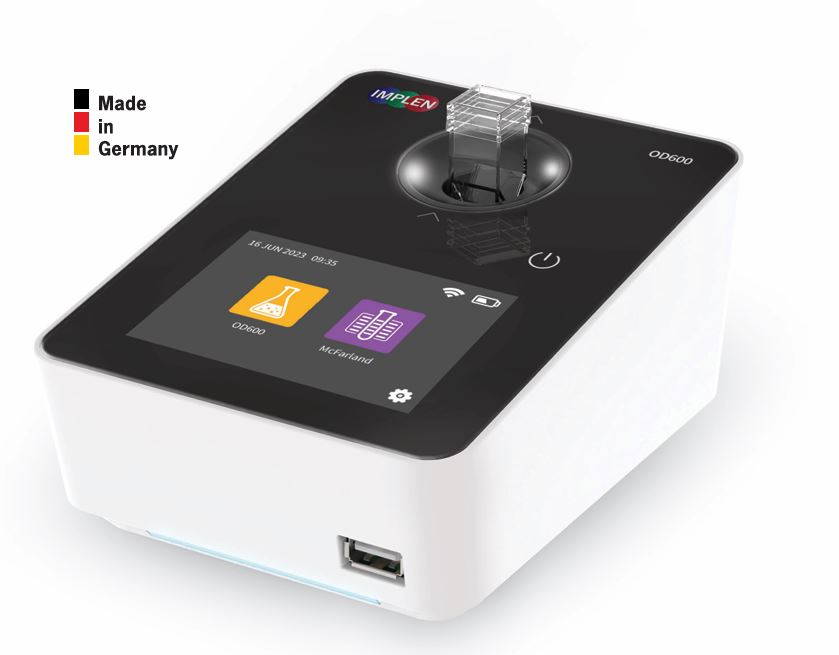

Implen OD600® Spectrophotometer
Protocol for Preparing a 0.5 MFU Bacterial Culture
The Implen OD600 simplifies McFarland tube preparation with a user-friendly protocol:
- Open the McFarland App: Select the default 16 mm calibration curve on the Implen OD600 device.
- Prepare the Blank: Fill a 16 mm test tube with 4.5 mL of sterile saline solution (e.g., PBS) and measure as a blank
- Inoculate PBS: Use sterile pipettes or an inoculating loop to transfer a single bacterial colony from an agar plate into a new 16 mm test tube with 4.5 mL PBS.
- Mix the Suspension: Vortex gently for uniform dispersion.
- Measure Turbidity: Insert the tube into the Implen OD600 and record the MFU value.
- Adjust Turbidity: Dilute with PBS or add more bacteria to achieve the desired 0.5 McFarland unit (≈1.5 × 10^8 CFU/mL).
- Verify and Document: Re-measure the MFU and save results to the sample list for export via USB.
This protocol ensures precise bacterial culture standardization, critical for applications like antimicrobial susceptibility testing.
Creating a McFarland Calibration Curve
To ensure OD600 reader accuracy, the Implen OD600 allows users to create custom McFarland calibration curves tailored to their setup. The process, adapted from a protocol by SMILE (Johns Hopkins University), involves:
- Prepare Solutions: Use 1% sulfuric acid and 1.175% barium chloride to create a barium sulfate precipitate.
- Mix for 0.5 MFU: Combine 85 mL of 1% sulfuric acid with 0.5 mL of 1.175% barium chloride in a 100 mL flask, then adjust to 100 mL with sulfuric acid.
- Homogenize: Stir for 3–5 minutes until uniform.
- Check OD: Measure optical density at 625 nm (acceptable range: 0.08–0.10 OD)
- Dispense and Store: Aliquot 2–7 mL into labeled glass tubes, seal with Parafilm, and store at room temperature in the dark for up to 3 months.
- Quality Control: Monitor OD every 3 months and compare with the Implen OD600’s default standard to detect clumping or evaporation.
This calibration ensures accurate conversion of OD600 absorbance to MFU, enhancing reliability across experiments.
| Volume in mL | |||
|---|---|---|---|
| Standard | 1% BaCl2 | 1% H2SO4 | Number of Bacteria/ mL/(108) represented |
| 0.5 | 0.5 | 99.5 | 1.5 |
| 1 | 1.0 | 99.0 | 3 |
| 2 | 2.0 | 98.0 | 6 |
| 3 | 3.0 | 97.0 | 9 |
| 4 | 4.0 | 96.0 | 12 |
| 5 | 5.0 | 95.0 | 15 |
Advantages of the Implen OD600 McFarland App
The McFarland app features streamline workflows with an intuitive interface, secure storage of calibration values, and seamless data export. The device’s glove-compatible touchscreen and compatibility with various tube sizes make it ideal for diverse lab environments, including biosafety hoods and anaerobic conditions. By leveraging the Beer-Lambert Law, the Implen OD600 ensures precise optical density 600 nm measurements, accounting for light scattering by bacterial cells.
Conclusion
The combination of McFarland standards and the Implen OD600 device transforms bacterial culture standardization, offering unmatched precision and efficiency. By replacing subjective visual assessments with spectrophotometer-based OD600 absorbance measurements, the Implen OD600 ensures consistent microbial inoculum preparation for critical applications. Whether in clinical microbiology, biotechnology, or quality control, this technology empowers researchers to achieve reliable, reproducible results, advancing scientific discovery.
Inkarp Instruments is a reliable supplier and service provider for Implen products in India, delivering advanced scientific solutions tailored to the changing needs of contemporary research. With a steadfast dedication to quality and reliability, we empower researchers across the country with innovative technology and specialized expertise to foster progress and breakthroughs
References:
1. Implen OD600® User Manual:
https://www.implen.de/downloads/#od600
2. YouTube video about a McFarland measurement:
https://www.youtube.com/watch?v=yjiLk9_ZC1I
3. Implen Webpage:
https://www.implen.de/implen-od600/mcfarland-application/
4. How to create your own McFarland standards:
https://microbenotes.com/mcfarland-standards/
5. Preparation of McFarland Standards (Protocol from SMILE, Johns Hopkins University, Baltimore, MD, USA):
https://www.researchgate.net/profile/Jayedul- Hassan/post/what_is_the_best_McFarland_standard_machine/attachment/59d632ccc49f47 8072ea1c83/AS%3A273636756262916%401442251495264/download/MacFarland+Standard .doc
